12V/24V/48V DC Multifunctional Hydraulic Power Pack Units

Short Description:

OMAY DC 12V/24V Double Acting Hydraulic power units, compact hydraulic power packs are widely used on hydraulic lifts, material lift, scissor lift. Normally, they are equiped with double acting solenoid valves, power up and power down for double acting hydraulic cylinders.

Send email to us

Product Detail

Product Tags

SPECIFICATIONS

1).Voltage rating: 12 & 24 VDC
2). Pump option: 0.75cc/rev, 1.0 cc/rev, 1.2cc/rev, 1.6 cc/rev, 2.1 cc/rev, 2.4 cc/rev, 2.6cc/rev,2.8cc/rev,3.0 cc/rev, 4.0 cc/ rev, 5.0 cc/rev, 6.0 cc/rev, 7.0 cc/rev, 8.0cc/rev, 9.8cc.rev.
3). Motor Power : 0.37KW – 4.0KW
4). Hydraulic oil: Mineral oil with a viscosity range of 6 to 450 cSt at stabilized working temperature

5). Solenoid Valve Voltage : 12V / 24V
6). System Pressure : 1.6MPa – 25MPa
7). Tank Capacity : 1.0L – 50L
8). Mounting : horizontal / vertical / lateral horizontal
9). Tank material : steel / plastic
10). Tank shape : round / square
11). Accessories

PRODUCT DRAWING

PRODUCT DETAILS

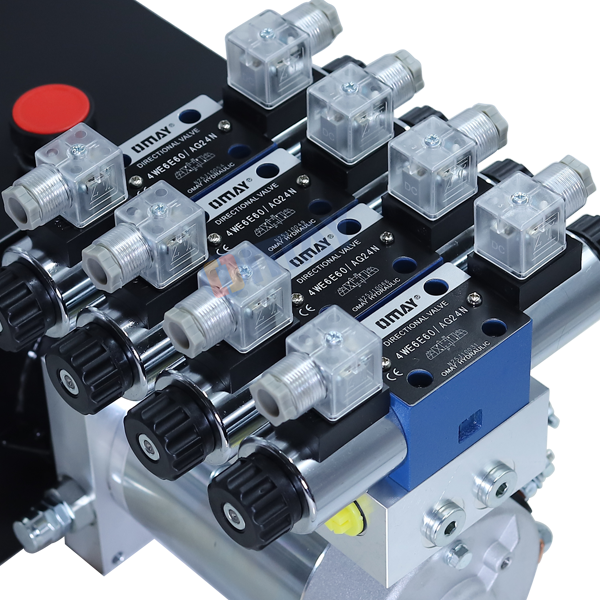

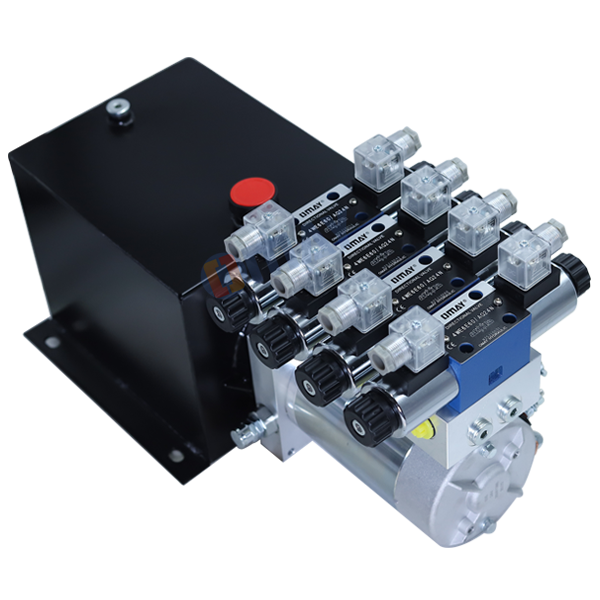

DC 24Volt 2200W Hydraulic Power Pack

COMPANY INFORMATION

Omay Hydraulics Drive Your Hydraulic System

Huaian Oumai Hydraulic Technology Co., Ltd. is located in Qingjiangpu Industrial Park, Huai an city, Jiangsu Province, with modern standard workshop and production equipments. 6S and ERP management systems are strictly implemented throughout our company. The company specializes in manufacturing and exporting Hydraulic power units/packs. Our Hydraulic power units have a strong performance in aerial work platform, forklift, car lift, dock leveler,dump trailer, robot AGV, electric basketball frame, concrete mixer, wing truck, garbage compressor etc. We support OEM and ODM for our esteemed customers.
