China AC Multifunctional Hydraulic Power Pack Units Customized factory and manufacturers

AC Multifunctional Hydraulic Power Pack Units Customized

Short Description:

OMAY AC Double Acting Hydraulic power units, compact hydraulic power packs are widely used on hydraulic lifts, material lift, small scissor lift. Normally, they are equiped with double acting solenoid valves, power up and down for double acting hydraulic cylinders, or motors. The solenoids and blocks are equiped separately for customized application.

Send email to us

Product Detail

Product Tags

SPECIFICATIONS

1).Voltage rating: AC 110V/220V/380V
2). Pump displacement: 0.75cc/rev, 1.0 cc/rev, 1.2cc/rev, 1.6 cc/rev, 2.1 cc/rev, 2.4 cc/rev, 2.6cc/rev,2.8cc/rev,3.0 cc/rev, 4.0 cc/ rev, 5.0 cc/rev, 6.0 cc/rev, 7.0 cc/rev, 8.0cc/rev, 9.8cc.rev.
3). Motor Power : 0.37KW – 4.0KW
4). Hydraulic oil: Mineral oil with a viscosity range of 6 to 450 cSt at stabilized working temperature

5). Solenoid Valve Voltage : 12V / 24V / 110V / 220V
6). System Pressure : 1.6MPa – 25MPa
7). Tank Capacity : 1.0L – 100L
8). Mounting : horizontal / vertical / lateral horizontal
9). Tank material : steel / plastic
10). Tank shape : round / square
11). Accessories

PRODUCT DRAWING

PRODUCT DETAILS

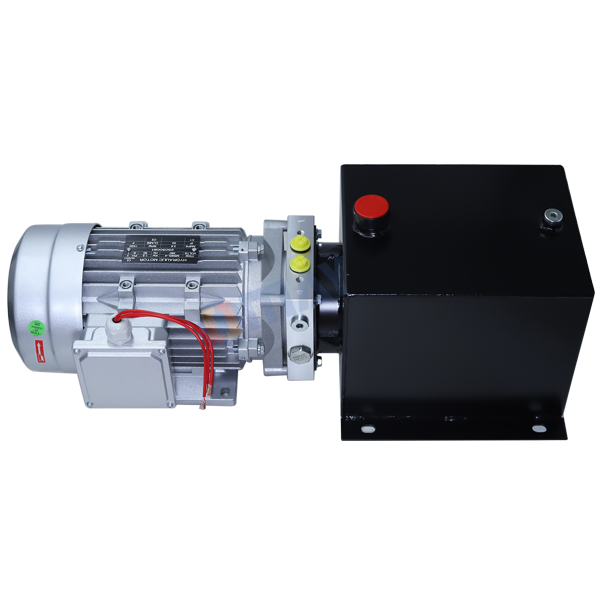

AC 110V/220V/380V Double Acting Hydraulic Power Pack Units

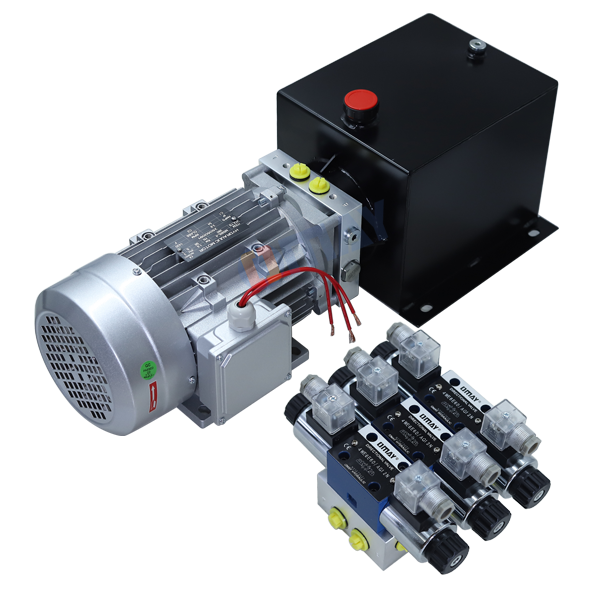

AC Multi-functional Hydraulic Power Unit

COMPANY INFORMATION

Omay Hydraulics Drive Your Hydraulic System

Huaian Oumai Hydraulic Technology Co., Ltd. is located in Qingjiangpu Industrial Park, Huai an city, Jiangsu Province, with modern standard workshop and production equipments. 6S and ERP management systems are strictly implemented throughout our company. The company specializes in manufacturing and exporting Hydraulic power units/packs. Our Hydraulic power units have a strong performance in aerial work platform, forklift, car lift, dock leveler,dump trailer, robot AGV, electric basketball frame, concrete mixer, wing truck, garbage compressor etc. We support OEM and ODM for our esteemed customers.
