DCV60 Sectional Hydraulic Directional Control Valve 60lpm
DCV60 Sectional Hydraulic Directional Control Valve 60lpm
SPECIFICATIONS
| Nominal Flow Rate | 60 L/min |
|---|---|
| Opening Pressure(Max) | 315 bar |
| Back Pressure(Max) | 25 bar |
| A Side Spool Positioners | manual, pneumatic, electro-hydraulic... |
| Pressure Medium | Mineral oil based hydraulic oil |
| Viscosity Range | 12 mm²/s - 400 mm²/s |
| Internal Leakage | 5 cc/min at 100 bar, 40℃ |
|---|---|
| Ambient Temp | -40°C to +80°C (-40°F to +176°F) |
| Valve Structure | Sectional Control Valve |
| Valve Surface | Phosphating treating |
| Valve Sections | 1-12 Sections |
| Rustproof Level | Neutral salt spray test, 72hours |

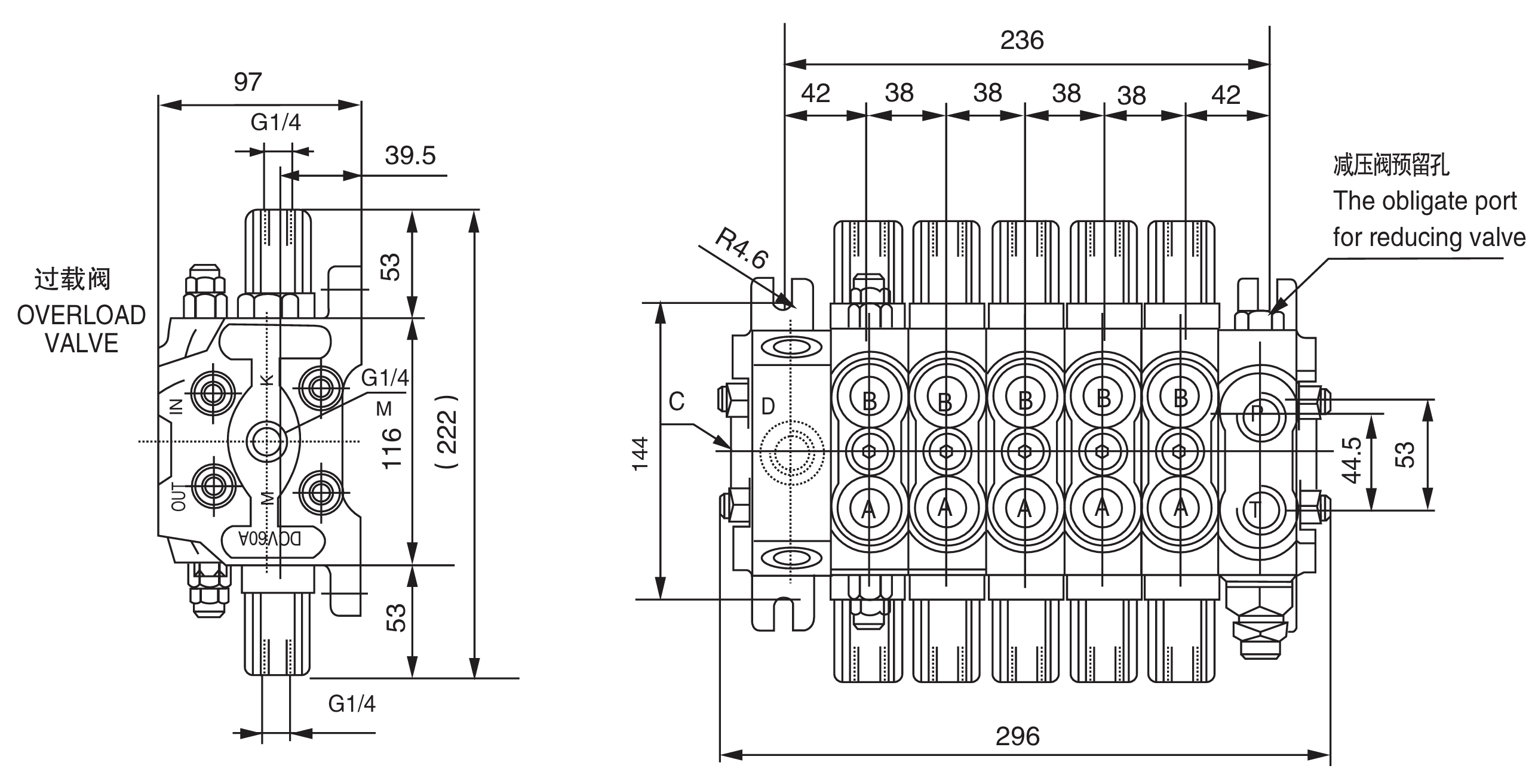

PRODUCT DRAWING
PRODUCT DETAILS

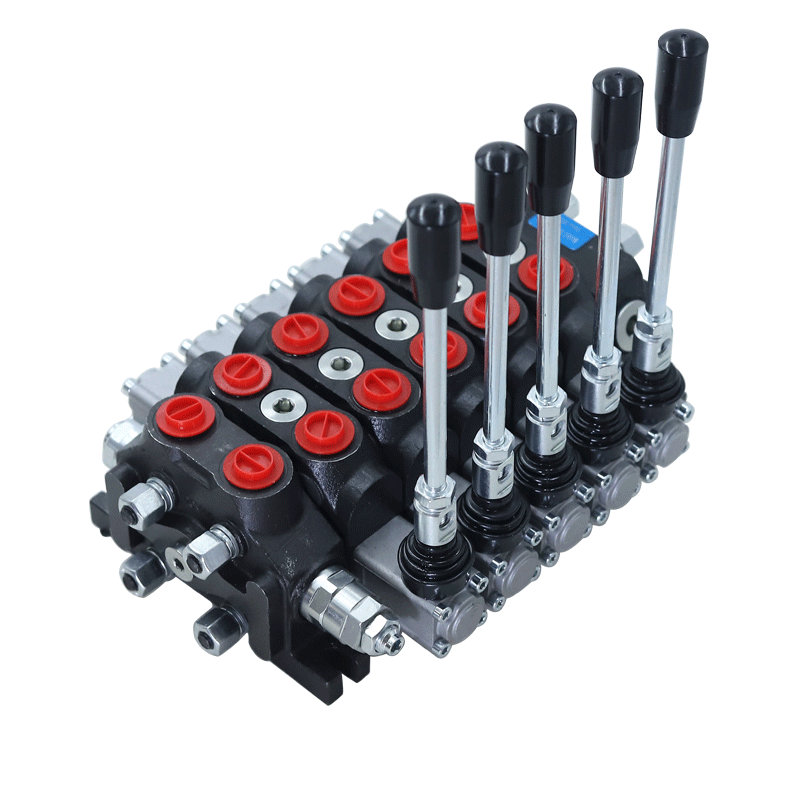

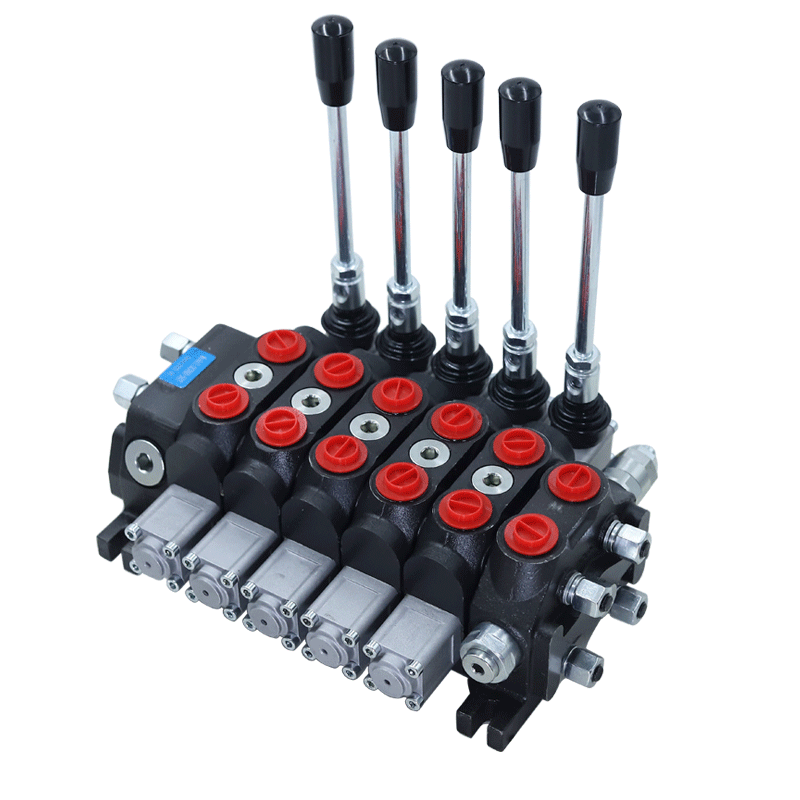

DCV60 Sectional Hydraulic Directional Control Valve
COMPANY INFORMATION
Omay Hydraulics Drive Your Hydraulic System
Huaian Oumai Hydraulic Technology Co., Ltd. is located in Qingjiangpu Industrial Park, Huai an city, Jiangsu Province, with modern standard workshop and production equipments. 6S and ERP management systems are strictly implemented throughout our company. The company specializes in manufacturing and exporting Hydraulic power units/packs. Our Hydraulic power units have a strong performance in aerial work platform, forklift, car lift, dock leveler,dump trailer, robot AGV, electric basketball frame, concrete mixer, wing truck, garbage compressor etc. We support OEM and ODM for our esteemed customers.
