Hydraulic Cylinder Bore Diameter 50mm 63mm
Hydraulic Cylinder Bore Diameter 50mm 63mm
SPECIFICATIONS

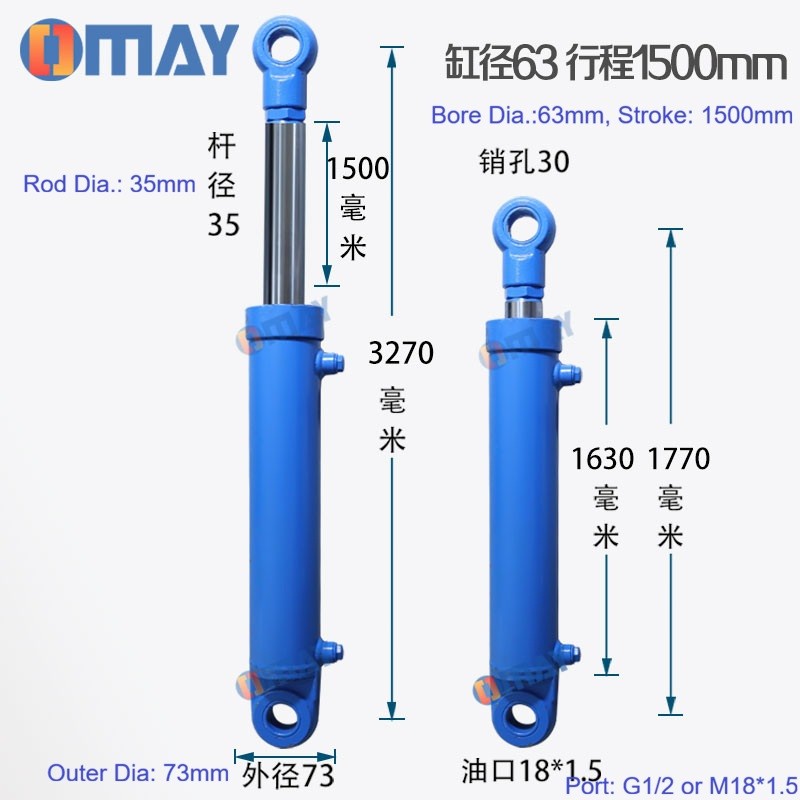

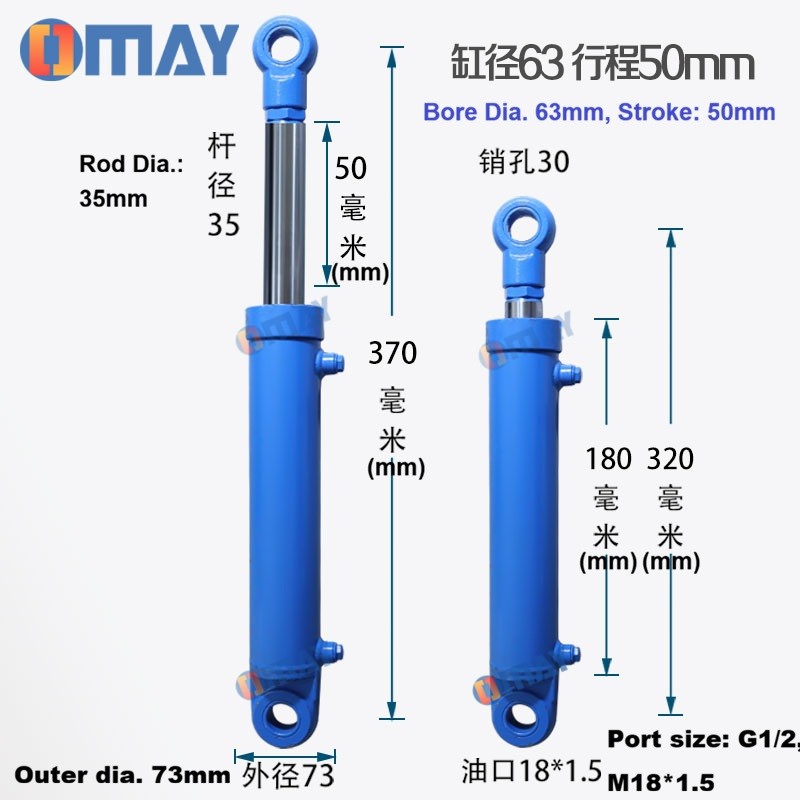

Hydraulic Cylinder Specifications:
Bore Dia.: 63mm
Rod Dia.: 35mm
Outer Dia.: 73mm
Port size: G1/2 or M18*1.5
Stroke: from 50mm to 1500mm
PRODUCT DRAWING
PRODUCT DETAILS
Mini pump for Hydraulic Power Pack
COMPANY INFORMATION
Omay Hydraulics Drive Your Hydraulic System
Huaian Oumai Hydraulic Technology Co., Ltd. is located in Qingjiangpu Industrial Park, Huai an city, Jiangsu Province, with modern standard workshop and production equipments. 6S and ERP management systems are strictly implemented throughout our company. The company specializes in manufacturing and exporting Hydraulic power units/packs. Our Hydraulic power units have a strong performance in aerial work platform, forklift, car lift, dock leveler,dump trailer, robot AGV, electric basketball frame, concrete mixer, wing truck, garbage compressor etc. We support OEM and ODM for our esteemed customers.
