Z80 Electric Control Hydraulic Directional Valve 80lpm Solenoid Operated
Z80 Electric Control Hydraulic Directional Valve 80lpm Solenoid Operated
SPECIFICATIONS
| Nominal Flow Rate | 80 L/min |
|---|---|
| Opening Pressure(Max) | 250 bar |
| Back Pressure(Max) | 25 bar |
| A Side Spool Positioners | solenoid operated |
| Pressure Medium | Mineral oil based hydraulic oil |
| Viscosity Range | 12 mm²/s - 400 mm²/s |
| Internal Leakage | 5 cc/min at 100 bar, 40℃ |
|---|---|
| Ambient Temp | -40°C to +80°C (-40°F to +176°F) |
| Nominal Voltage | 12VDC or 24VDC |
| Valve Surface | Phosphating treating |
| Body Kit | 01Z80, 02Z80, 03Z80,...06Z80 |
| Rustproof Level | Neutral salt spray test, 72hours |
Z80 series valves with middle-high pressure monoblock construction is developed based on European technology.
• The Monoblock directional control valves-solenoid operated, provide perfect choice whether you are designing a new system or just improving your current system.
• Inner check valve: The check valve inside the valve body is to insure the hydraulic oil not to be returned.
• Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working pressure.
• Oil way: Parallel circuit, power beyond option
• Coils, Connector ISO4400: 12VDC, 24VDC
• Threads:P,A,B-G1/2, SAE10, T-G3/4, SAE12

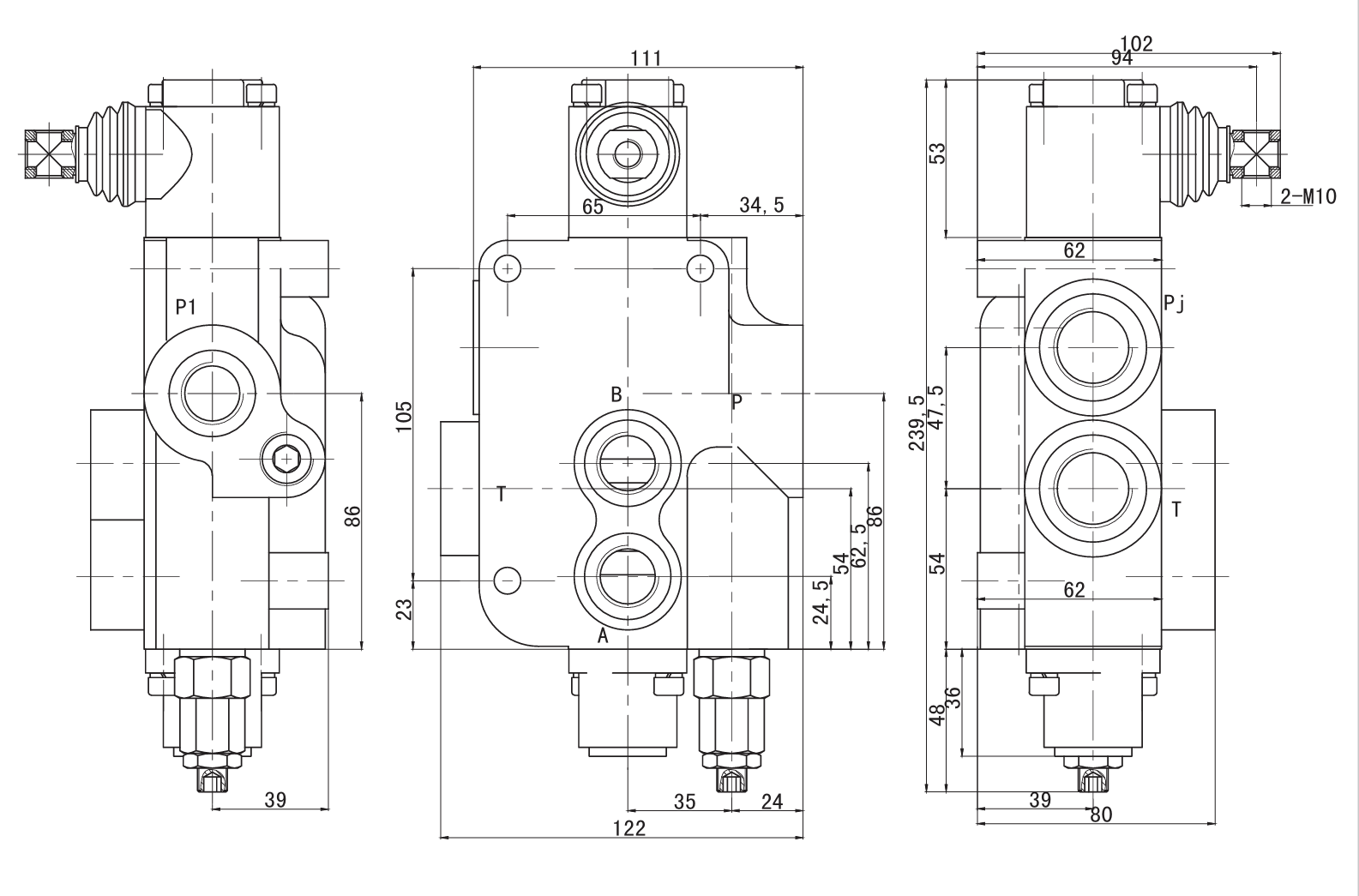

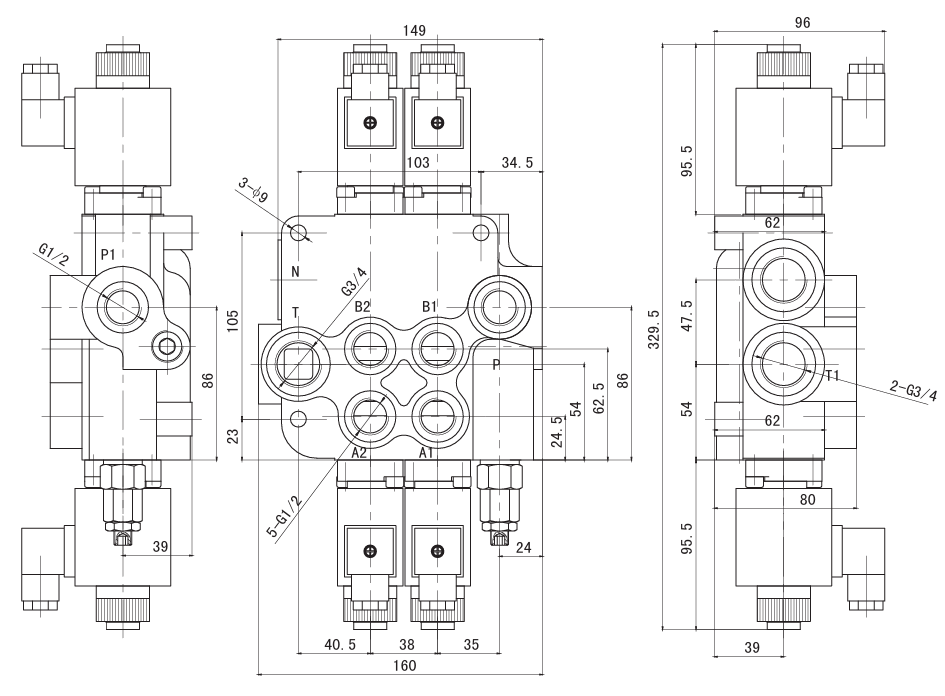

PRODUCT DRAWING

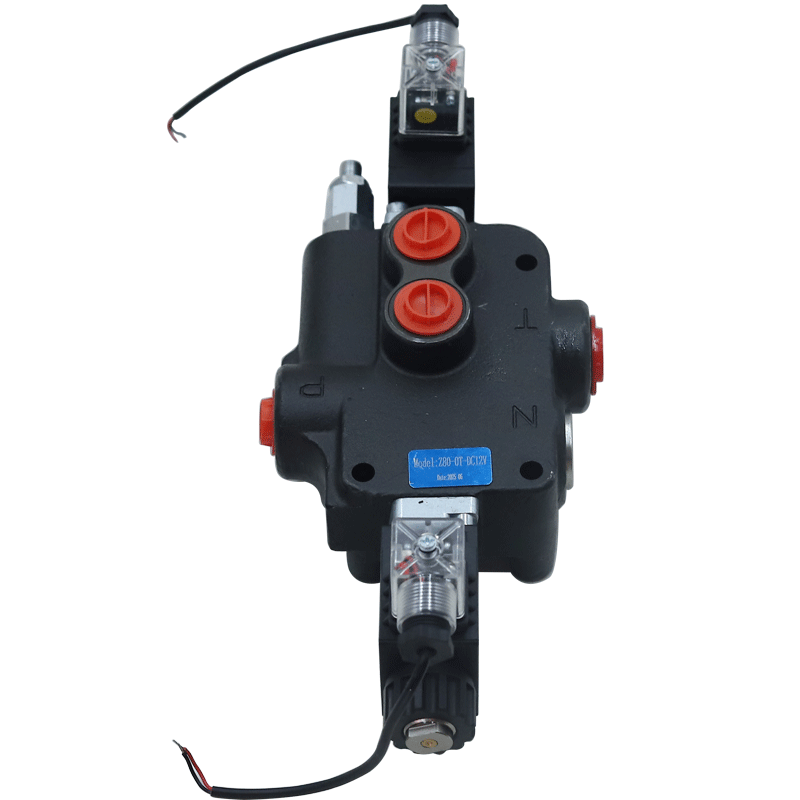

PRODUCT DETAILS
Z80 Electric Control Hydraulic Directional Valve 80lpm Solenoid Operated
