24V48V60V72V DC Hydraulic Power Packs with P T Port

24V48V60V72V DC Hydraulic Power Packs with P T Port

Short Description:


Product Detail

Product Tags

SPECIFICATIONS

1).Voltage rating: 12 & 24 VDC
2). Pump option: 0.75cc/rev, 1.0 cc/rev, 1.2cc/rev, 1.6 cc/rev, 2.1 cc/rev, 2.4 cc/rev, 2.6cc/rev,2.8cc/rev,3.0 cc/rev, 4.0 cc/ rev, 5.0 cc/rev, 6.0 cc/rev, 7.0 cc/rev, 8.0cc/rev, 9.8cc.rev.
3). Motor Power : 0.37KW – 4.0KW
4). Hydraulic oil: Mineral oil with a viscosity range of 6 to 450 cSt at stabilized working temperature

5). Solenoid Valve Voltage : 12V / 24V
6). System Pressure : 1.6MPa – 25MPa
7). Tank Capacity : 1.0L – 50L
8). Mounting : horizontal / vertical / lateral horizontal
9). Tank material : steel / plastic
10). Tank shape : round / square
11). Accessories

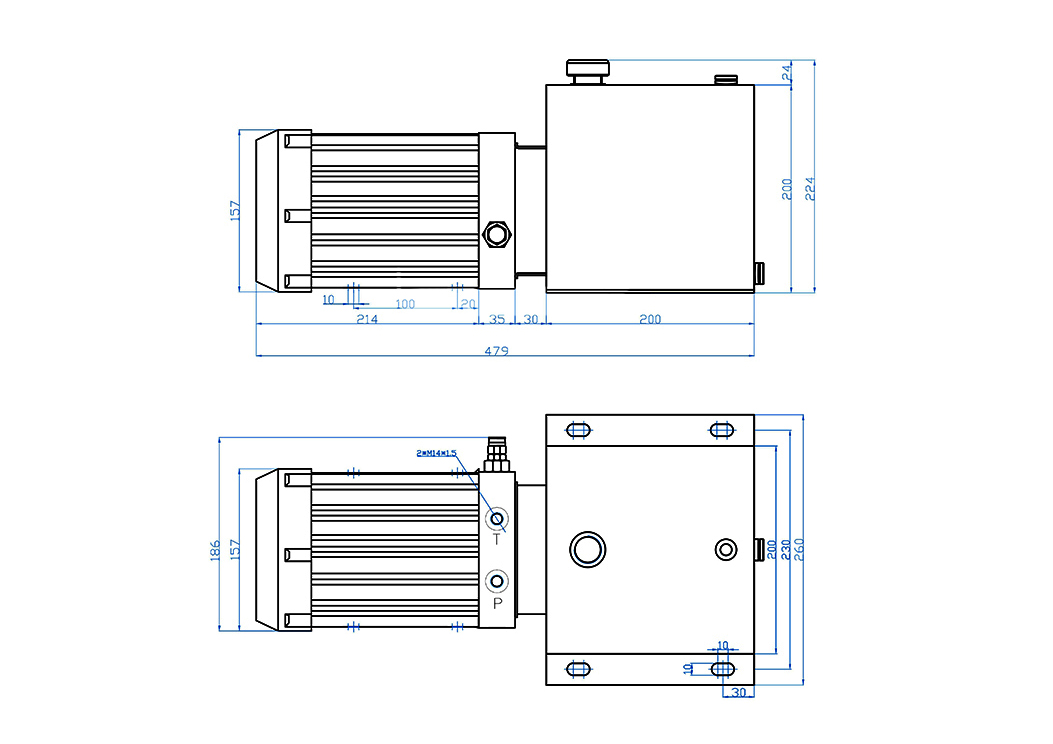

PRODUCT DRAWING

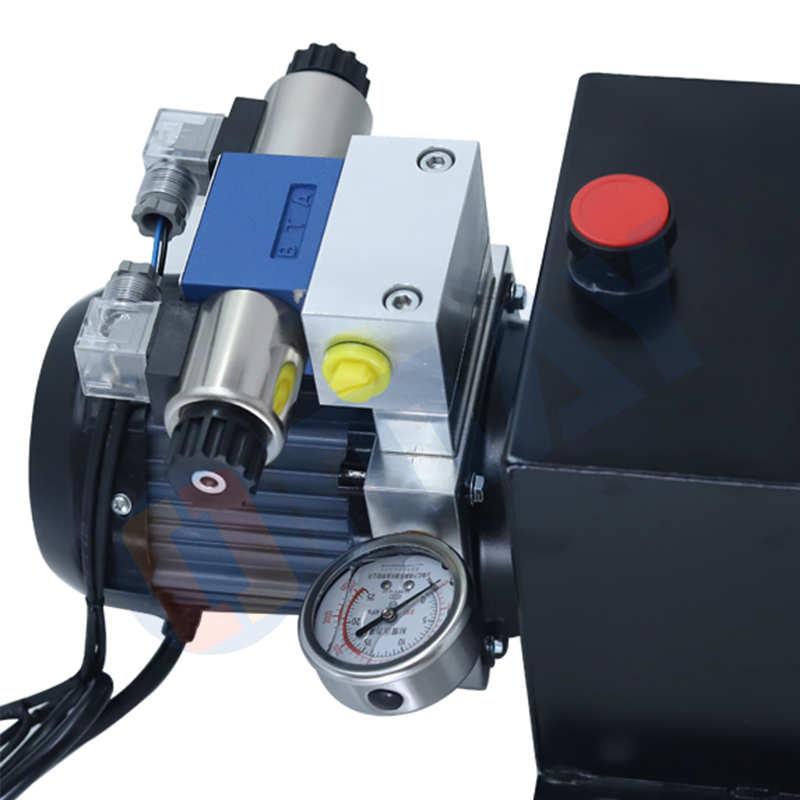

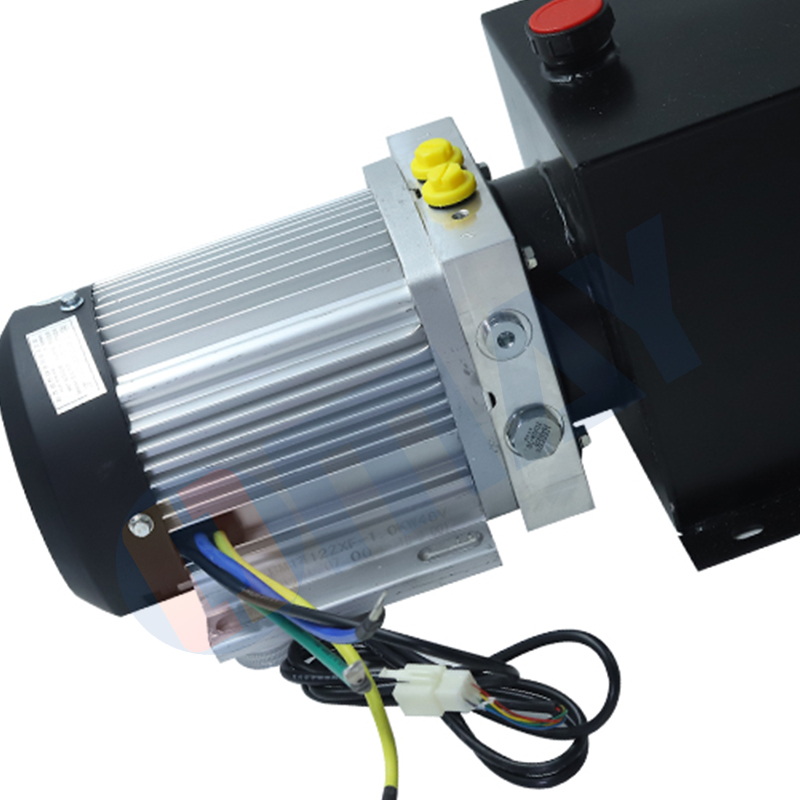

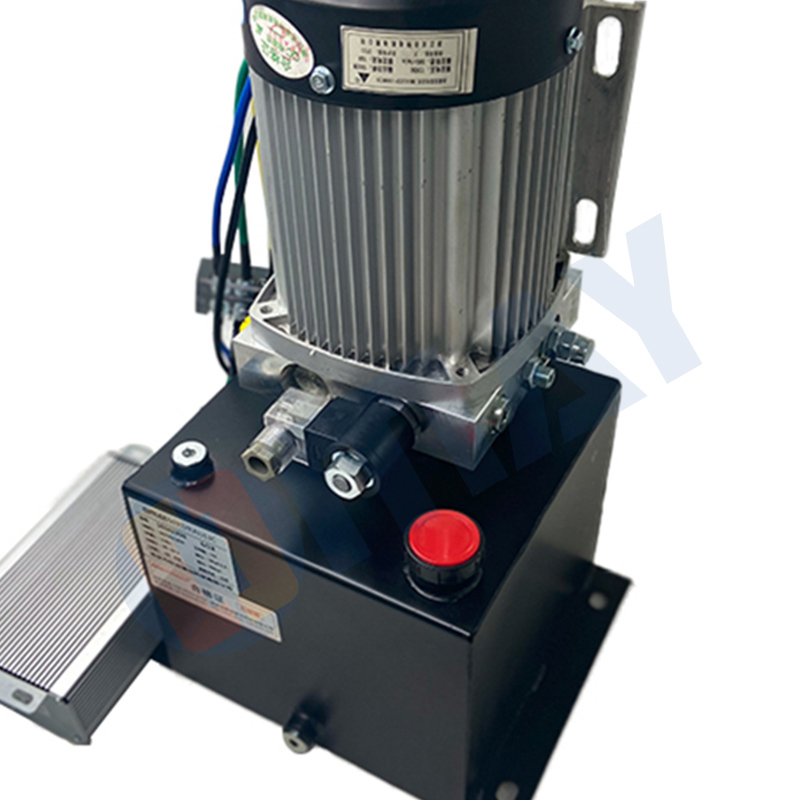

PRODUCT DETAILS

24V48V60V72V DC Hydraulic Power Packs with P T Port

COMPANY INFORMATION

Omay Hydraulics Drive Your Hydraulic System

Huaian Oumai Hydraulic Technology Co., Ltd. is located in Qingjiangpu Industrial Park, Huai an city, Jiangsu Province, with modern standard workshop and production equipments. 6S and ERP management systems are strictly implemented throughout our company. The company specializes in manufacturing and exporting Hydraulic power units/packs. Our Hydraulic power units have a strong performance in aerial work platform, forklift, car lift, dock leveler,dump trailer, robot AGV, electric basketball frame, concrete mixer, wing truck, garbage compressor etc. We support OEM and ODM for our esteemed customers.
